DEC VT180
| DEC VT180 | |
|---|---|
 | |
| Manufacturer | DEC |
| Model | VT180 |
| Lifetime | |
| Introduced | November, 1981 |
| Communication | |
| Interfaces |
RS-232C, 20 mA current loop |
| Baud Rates | 50, 75, 110, 134.5, 150, 200, 300, 600, 1200, 1800, 2000, 2400, 3600, 4800, 9600, 19200 |
| Display | |
| Size | 12-inch |
| Phosphor | P4 white |
| Character Modes | |
| Resolutions | 80x24, 132x14 |
| Matrix | 7x9 |
| Firmware | |
| CPU | 4 MHz Mostek MK3880N (Z80) |
| ROM | 8 KB |
| RAM | 3 KB |
| Personalities |
DEC VT52, DEC VT100 |

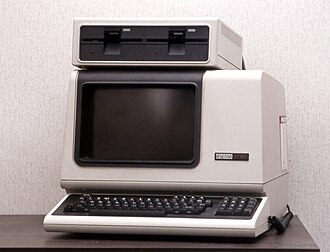

The DEC VT180 is a DEC VT100 terminal with the ability to run local CP/M programs on an integrated Mostek MK3880N (Z80 compatible) microprocessor.[1] A VT100 could be upgraded to a VT180 with the addition of floppy drives, a replacement expansion backplane for the terminal and additional card containing the processor and disk interface.
Manx
- VT180 Series Technical Manual, February, 1983
- VT18X Upgrade and System Test Guide, July, 1982
- Getting Started With MBASIC VT180 V5.21, January, 1981
- BASIC-80 Reference Manual VT180 V5.21, January, 1981
Images
Advertisement
External Links
- Disk images
- Dave's Old Computers - VT180 disks under System / Install disks
References
- ↑ DEC advertisement, Computerworld, November 2, 1981, pg. 36
