Revision as of 02:43, 21 February 2012

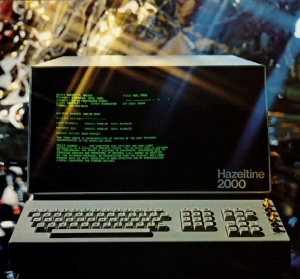

The Hazeltine 2000 terminal was introduced in October, 1970
Features:
- 12-inch screen
- green phosphor
- 74x27 display resolution
- 4x7 dot character matrix
- 525 line TV raster
- 2048x8 magnetic core memory
- 64 displayable ASCII characters
- 32 ASCII control codes
- 60 Hz refresh rate
- acoustic coupler or TTY33-ASR interface
- transmission rates 110, 150, 300, 600, 1200 baud, switchable
- weight 73 lbs
- dimensions width 18.5 inches, height 12.5 inches, depth 22 inches
- options:
- magnetic tape cassette
- remote monitors
